Steel Drums
200ℓ Steel Drums
- The steel plate used in our drums are made of JIS G3131 hot-rolled steel plate and JIS G3141 cold-rolled steel plate.
- In order to meet demands for high chemical resistant containers, coating processes, baking time and baking temperature of our lined cans are automatically controlled, which ensures finishing to a high degree of quality.
- Drum cans are chemically coated inside and outside with zinc phosphate and iron phosphate films, This gives the inside a first degree rust-proofing and maintains the durability of paint on the outside.

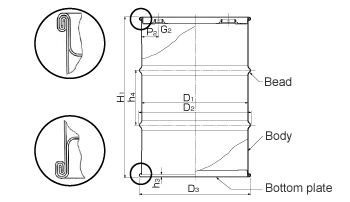

Closed head type drums are the most common type of closed head cans with both the top and bottom plates curled to a leak-tight seam.
It is widely used for lubricants, chemicals and foods, etc.
* Conforms to as JIS Z1601 steel tight head drum (200ℓ)
Product Specifications
| Outline | |||
|---|---|---|---|
| Item | Dimensions | Value | Tolerance Level |
| Total capacity(ℓ) | 212 | Minimum | |
| Inner diameter | D1 | 566 | ±2 |
| Outer diameter | D2 | 585 | Maximum |
| Chime inner diameter | D3 | 585 | Maximum |
| Drum height | H1 | 890 | ±5 |
| Clearance between base and floor | h3 | 4 | Minimum |
| Distance between beads | h4 | 300 | ±3 |
| At about 50mm depth from the top, the distance from the exterior to G2 (50 mm), the position of the bung. | P2 | 94 | ±3 |
With a detachable lid, our open head cans are used primarily for holding viscous liquids such as paint and adhesive, as well as solids and powders.
* Conforms to a JIS Z1600 steel open head drum (200ℓ)
Product Specifications
| Outline | |||
|---|---|---|---|
| Item | Dimensions | Value | Tolerance Level |
| Total capacity(ℓ) | 208 | Minimum | |
| Inner diameter | D1 | 566 | ±2 |
| Ring outer diameter | D2 | 585 | Maximum |
| Lower chime outer diameter | D3 | 585 | Maximum |
| Closing ring outer diameter | D4 | 620 | Maximum |
| Drum height | H1 | 890 | ±5 |
| Height with no lid | h5 | 880 | ±5 |
| Clearance between base and floor | h3 | 4 | Minimum |
| Distance between beads | h4 | 300 | ±3 |
| At about 50mm depth from the top, the distance from the exterior to G2(50 mm), the position of the bung | P2 | 94 | ±3 |
