Steel Drums

Drum regeneration process

SOP Drums - Rounded bottom type

  • This type of drum for high viscosity contents can be reused repeatedly.
  • Owing to the original structure, it is high quality, durable and economical.
  • Quality does not degrade in reuse.

SOP Drum Characteristics

Designed for repeated use with viscous substances such as paint, varnish, adhesive, etc.
Unlike general steel drums, the bottom corner is rounded to ensure all residue is removed.
To increase strength, a 9mm core is inserted inside the curl on the top of the drum and the bottom is reinforced with a 2.3 mm skirt.
SOP drums can be reused ten or more times. They are highly rated by users a very economical drums.

SOP Drums

Product Specifications

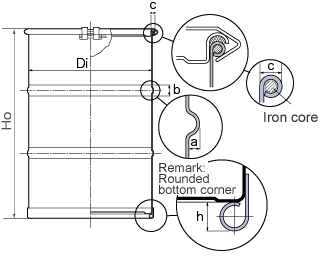

Item Outline Dimensions Tolerance
Inner diameter/Di (mm) 567 ±3
Outer height/Ho (mm) 895 ±10
Chime/h (mm) 30 ±3
Beads a (mm) 7 以上
b (mm) 32 以上
Lip curl c(mm) 12 ±2
Capacity (ℓ) 200 or more
Weight (kg) 25.0 or more

SOP Drums

Plate thickness

Top Bottom Body
1.2 1.6 1.2

(Unit: mm)

Performance test standards for hazardous substance containers

Fire Services Act: Compliant when the density is 1.4 or more L-Y (KHK).
